'Marconi' Direction Finder Type 11F, by Marconi Company, London, c. 1920

Inventory Number 54065

Acknowledgement: © History of Science Museum, University of Oxford, inv.54065

Item type
Object
Provenance
Presented by the Marconi Corporation.
Primary inscriptions
"'MARCONI' / DIRECTION FINDER / TYPE 11.F. / P.S. No. 1977 A / INST. No 351150 / MARCONI'S WIRELESS TELEGRAPH CO. LTD." printed on metal plaque on front exterior surface.
Other inscriptions
"INST. No 350350 P.S. No 1973 A" printed on upper vertical panel. "INST No 350988 P.S. No 1974 A" printed on radiogoniometer panel. "INST No 350325 P.S. No 1975 A" printed on tuning condenser panel. "EARTHING / RELAY / P.S. No 928 C / INST. No 350303" printed on earthing relay panel. "CALIBRATING CHOKE / INST. No 349699 P.S. No. 1976 A" printed on calibrating choke panel.
Object type
Radio communication
Dimensions
Height: 470mm Width: 440mm Depth: 300mm
Inventory No
54065
Accession Number
2004-9/578

Description

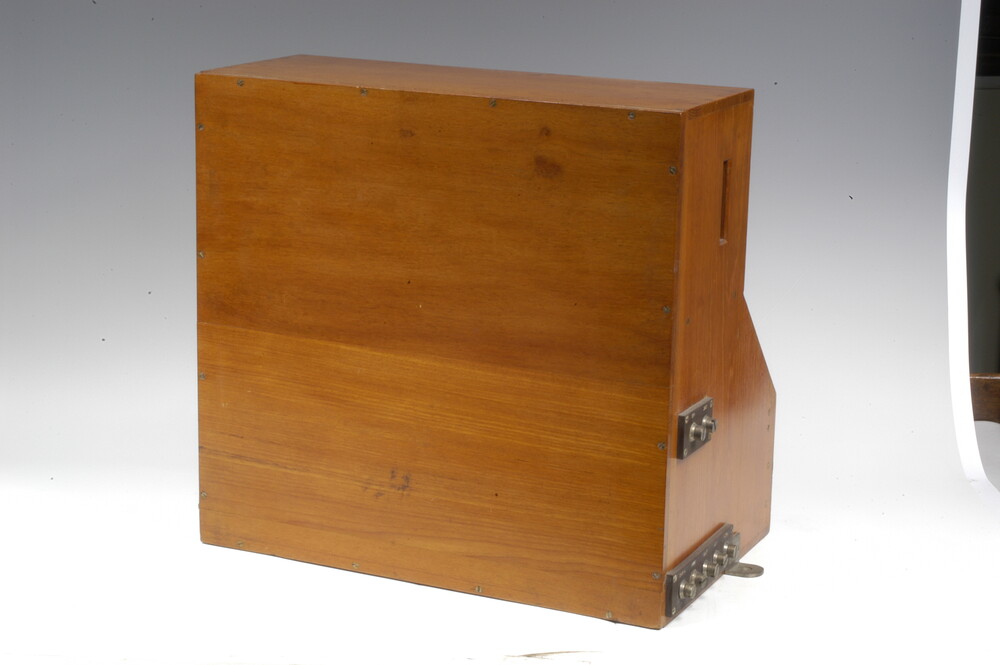

Marconi' Direction Finder Type 11F, with assorted vertical and sloped ebonite panels, in a dovetailed teak case. With seven DEV/Q valves, note magnifier switch, and filaments control upon upper vertical surface. With yellow glazed-top radiogoniometer (scale 0-360) and tuning condenser dial (scale 0-10), parallel condenser switch, DF sense switch, upon central sloping ebonite and white plastic(?) panel. With earthing relay and calibrating choke ebonite sections upon lower vertical section. With four plugs, two nickel-plated terminals (marked "DF1", "DF2"), and a bank of five nickel-plated terminals (marked "EARTH", "PORT", "STBD.", "AFT", "FORE" respectively) on left hand side exterior surface of case. With a bank of five nickel-plated terminals (marked "SWITCH", "4V+", "6V+", "COMM", "HT+" respectively) upon right hand side exterior surface of case.
